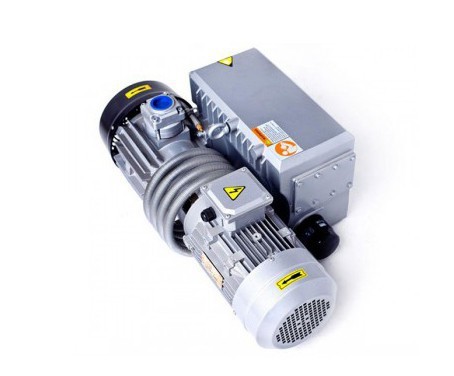

High quality blade Vane vacuum pump

As an important equipment in the field of vacuum technology,blade type Vane vacuum pump achieve gas compression and discharge through blade rotation or reciprocating motion,and are widely used in industries such as semiconductor manufacturing,chemical engineering,and food packaging.With the increasing demand for equipment performance,energy efficiency,and reliability in industrial production,the connotation of High quality blade vacuum pump has expanded from a single function to comprehensive optimization throughout the entire life cycle.
1、Working principle:synergy between blade motion and vacuum generation
The core principle of a vane type Vane vacuum pump is to periodically change the working chamber volume through the relative motion between the vanes and the pump chamber,achieving gas suction,compression,and discharge.Taking a rotary vane Vane vacuum pump as an example,the rotor is eccentrically installed inside the pump chamber,and the blades are tightly attached to the chamber wall under centrifugal force,dividing the pump chamber into multiple independent spaces.When the rotor rotates,the outward extension of the blades increases the volume of the cavity,creating negative pressure to suck in gas;When the blade shrinks,it compresses the gas and releases it.The double acting blade pump achieves bidirectional pumping through the symmetrical movement of the blades on both sides,with an efficiency increase of over 30%compared to a single acting pump.In addition,some pump models use pneumatic devices to prevent water vapor condensation by injecting dry air,extending the life of oil products and reducing maintenance costs.
2、Core performance indicator:matching of vacuum and pumping speed
High quality blade vacuum pump must meet strict performance standards.Vacuum degree is the core indicator for measuring pump performance,meeting high vacuum requirements.The pumping speed range should cover 0.5-1000L/s and support variable frequency adjustment to adapt to different working conditions.
3、Structural Innovation:Modular and Low Leakage Design
Traditional vane pumps are prone to leakage and wear due to their complex structure.The High quality blade vacuum pump body adopts modular design,integrating core components such as pump chamber,rotor,and blades to reduce assembly errors.
4、Materials and processes:guarantee of corrosion resistance and long service life
For corrosive gases in industries such as chemical and pharmaceutical,High quality blade vacuum pump bodies require the use of special materials.For example,the pump chamber and blades are made of 316L stainless steel or titanium alloy,which has more than 5 times higher corrosion resistance than ordinary carbon steel.The surface treatment technology of the blades is also crucial.Some pump models adopt DLC coating,with a hardness of HV3000 or above and a wear resistance 10 times higher than traditional chrome plating process.The rotor bearings are made of ceramic ball bearings,which have a high temperature resistance of 200℃and a lifespan three times longer than steel bearings.
5、Intelligent control:real-time monitoring and fault warning

High quality blade vacuum pump require an integrated intelligent control system to achieve full process monitoring.For example,real-time data collection is achieved through pressure sensors and flow meters,combined with PLC algorithms to automatically adjust the speed and avoid overload operation.

6、Environmental performance:Low energy consumption and zero pollution design
With the advancement of carbon neutrality goals,High quality blade vacuum pump bodies need to balance energy efficiency and environmental protection.For example,using permanent magnet synchronous motors and variable frequency drive technology can save 15-25%energy compared to traditional asynchronous motors.The cooling system is optimized for closed circulation to reduce water resource consumption.In terms of oil management,some pump type integrated oil mist filters increase the oil and gas separation efficiency to 99.9%,avoiding environmental pollution.For example,a certain brand of pump body extends the oil replacement cycle to 2 years through an oil circulation purification system,reducing waste oil emissions by more than 500 liters per year.
The evolution of High quality blade vacuum pump is essentially a transformation from"equipment providers"to"system service providers".In the future,with the integration of industrial Internet and digital twin technology,the pump will further integrate edge computing and adaptive control to achieve intelligent collaboration with upstream and downstream equipment.
